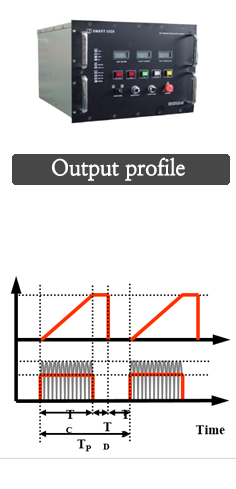

Smart series CPS was developed for the laser systems, radar systems, klystron modulator such as pulse system of high voltage capacitor charging.A high frequency inverter is achieved miniaturization to increase the switching frequency by adopting a series resonant topology as well as the powerful protection is equipped to protect the power supply from the load short-circuit or disconnection of the high voltage operation. When high output is required, it can easily increase the power output by driving the parallel connection of CCPS wired OR circuit output.
Parameter Data Unit
SMART 5008 SMART 5010 SMART 5015 SMART 5030
Input Voltage 3Φ220~480 3Φ220~480 3Φ220~480 3Φ220~480 VAC
IInput power 9 11 18 33 kVA
Efficiency >90 >90 >90 %
>0.85 >0.85 >0.85 >0.85
Output voltage 50 50 50 50 kV
Average output power 8 10 15 30 kW
Peak charging rate 9.4 11.8 18.75 37.5 kJ/sec
Average output current 0.32 0.4 0.6 1.2 A
Cooling Forced Air Forced Air Forced Air Water
Operating temperature 60 60 60 60 ℃
